University of Notre Dame
Aerospace and Mechanical Engineering

ME 654: Geometric Nonlinear Control
Homework 3

B. Goodwine Fall, 2003

Issued: August 28, 2003 Due: September 18, 2003

1.

Consider the system defined by

$$\dot x = A x + B u.$$

Let

$$\Delta = \left[ B \quad AB \quad A^2 B \quad \cdots \quad A^{n-1}B \right]$$

and

$$M = \left[ \begin{array}{ccccc} a_{n-1} & a_{n-2} & \cdots & ... ...& \cdots & 0 & 0\\ 1 & 0 & \cdots & 0 & 0 \end{array} \right]$$

where the a_i come from the characteristic equation for A:

$$\mbox{det}A = \lambda^n + a_1 \lambda^{n-1} + \cdots + a_{n-1} \lambda + a_n.$$

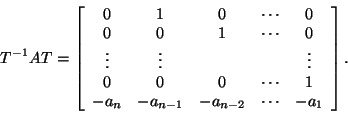

By considering the case n=3, show that

$$T^{-1}AT = \left[ \begin{array}{ccccc} 0 & 1 & 0 & \cdots & ... ... -a_{n-1} & -a_{n-2} & \cdots & -a_1 \\ \end{array} \right].$$

2.

Consider the system defined by

$$\dot x = A x + B u,$$

where

$$A = \left[ \begin{array}{ccc} 1 & 2 & 1 \\ 0 & 1 & 3 \\ 1 & 1... ...d B = \left[ \begin{array}{c} 1 \\ 0 \\ 1 \end{array} \right].$$

Transform the system into controllable canonical form.

3.

Consider the system defined by

$$\dot x = A x + B u,$$

where

$$A = \left[ \begin{array}{cc} 0 & 1 \\ -2 & -3 \end{array} \ri... ...\qquad B = \left[ \begin{array}{c} 0 \\ 2 \end{array} \right].$$

The characteristic equation of the system with no controller is

$$\mbox{det}(\lambda I - A) = \lambda^2 + 3 \lambda + 2,$$

so the eigenvalues of A are -1 and -2.

It is desired to have eigenvalues at -3 and -5 by using a state feedback control u = -K x. Determine the necessary feedback gain matrix, K and control signal u.

4.

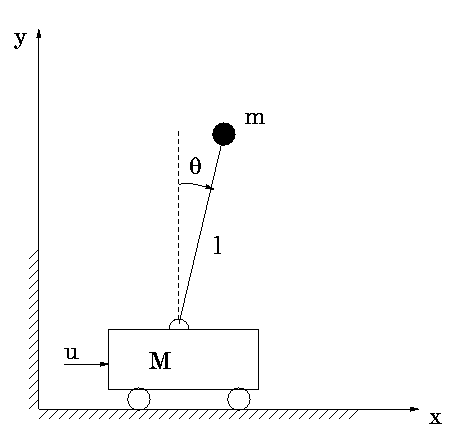

Consider the inverted pendulum shown in the figure where

$$\begin{eqnarray*}M &=& 2 \mbox{ kg}\\ m &=& 0.1 \mbox{ kg}\\ l &=& 0.5 \mbox{ m}.\\ \end{eqnarray*}$$

(a)

Determine the equations of motion for the system.

(b)

Linearize the equations of motion.

(c)

Show that the linearized system is controllable.

(d)

Using the method of pole placement, design a controller which stabilizes the system about the $\theta = 0$ position.

i.

Indicate where you chose to place the poles.

ii.

Simulate the controller on both the linearized as well as the actual equations of motion.
