Output Compare Interrupts

The output compare event is a hardware event tied to the micro-controller's real-time clock. The real-time clock on the $\mu$Stamp11 is a hardware subsystem within the $\mu$Stamp11 that provides a very precise and steady time reference. In particular, the clock increments a hardware register whose logical name is TCNT. TCNT is a 16-bit unsigned counter. It is incremented at a rate that is determined by two bits in a control register TMSK2.

The rate at which TCNT is incremented is determined by the bits PR1 (0x02) and PR0 (0x01) in TMSK2. The following commands

  TMSK2 &= ~0x01;
  TMSK2 &= ~0x02;
clear the PR0 and PR1 bits in TMSK2 and causes TCNT to be incremented once every 500 nanoseconds. Other update rates are shown in the following table under the assumption that the $\mu$Stamp11's clock is running at an 8 Mhz rate.

PR1 PR0 TCNT clock rate
0 0 500 nsec
0 1 1 $\mu$-sec
1 0 2 $\mu$-sec
1 1 4 $\mu$-sec

The counter TCNT cannot be reset or stopped by the user. So to generate timing events, we compare the value in TCNT against another number that is held in an output compare register. When the value in TCNT matches the number in the output compare register, we trigger an output-compare event. The Motorola 68HC11 micro-controller has 5 different output compare registers so it is possible to trigger 5 different output compare events . These registers have the logical names TOC1, TOC2, TOC3, TOC4, and TOC5. The exact addresses of these registers will be found in the include file hc11.h.

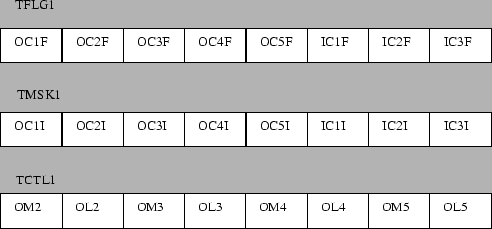

Figure 32 shows the three registers used by the output compare interrupt. These three registers are TMSK1, TFLG1, and TCTL1. The register TMSK1 is a control register that is used to "arm" the interrupt. The register TFLG1 is a status register that can be used to "acknowledge" the servicing of a caught interrupt. Register TCTL1 is used to modify the way in which the output compare interrupt interacts with the micro-controller's output pins.

Figure 32: Hardware Registers used by Output compare interrupt

Output compare events are generated in the micro-controller's hardware. This event will result in a hardware interrupt (also called an output compare interrupt) being generated if:

When the interrupt is caught by the software, program execution jumps to the interrupt vector and begins executing the instructions at that location. The user can install a special interrupt service routine (ISR) at this interrupt vector through the use of special compiler directives. We'll discuss how you go about writing an ISR in the next section.

The output compare event can also be used to effect specific output pins. The TCTL1 register determines what effect the OC2, OC3, OC4, and OC5 events will have on the output pin. The layout for the TCTL1 register is given in figure 32. The logical names for the bits in this register are OMx and OLx where x takes values between 2 and 5. The following table itemizes the effect that the bits in TCTL1 have on the output pins.

OMx OLx Effect when TOCx=TCNT
0 0 Does not effect OCx
0 1 toggle OCx
1 0 clear OCx (set to zero)
1 1 set OC1 (set to 1)

The OC events OC2, OC3, and OC4 are tied to pins PA4-PA6 on PORTA. Recall that these pins only have the direction state of "output". The other output-compare event, OC5, is tied to pin PA3 on PORTA. This is a bidirectional pin and this means that to use TCTL1 to effect PA3, we'll need to set its direction state to output. The OC1 event uses the output pin somewhat differently than OC2-OC5 and we won't discuss its use in this course. Output-compare events OC2-OC5, however, have easily defined functions. Namely that when the event OCx occurs, the state of the output pin PAx changes from 0 to 1 or vice versa, depending upon how the bits OMx and OLx are set. This can be extremely useful if we are attempting to have the micro-controller generate output voltages quickly in response to output compare events. Because the pin state changes are handled in hardware, this effect can be manifested very quickly. If we were to attempt to do the same thing in software, it could potentially take a long time for the ISR to execute and this can dramatically destabilize a program's real-time behavior.
